Choosing the Right Embedding Model for Your RAG Pipeline
Aug 6, 2026
·5 minute read
When building a Retrieval-Augmented Generation (RAG) pipeline, the focus usually falls on the LLM. But an LLM is only as good as the context it receives. Before it generates any answer, the embedding model working behind the scenes has to determine which documents are retrieved, and if retrieval fails, even the most capable LLM has no relevant context to work with. A poor embedding model can lead to irrelevant search results, hallucinated answers, or missing context, regardless of how powerful the generator is.
With so many embedding models available, choosing the right one can be challenging. The decision isn't as simple as picking the highest benchmark score, the right choice depends on your data, latency requirements, language support, and infrastructure constraints.

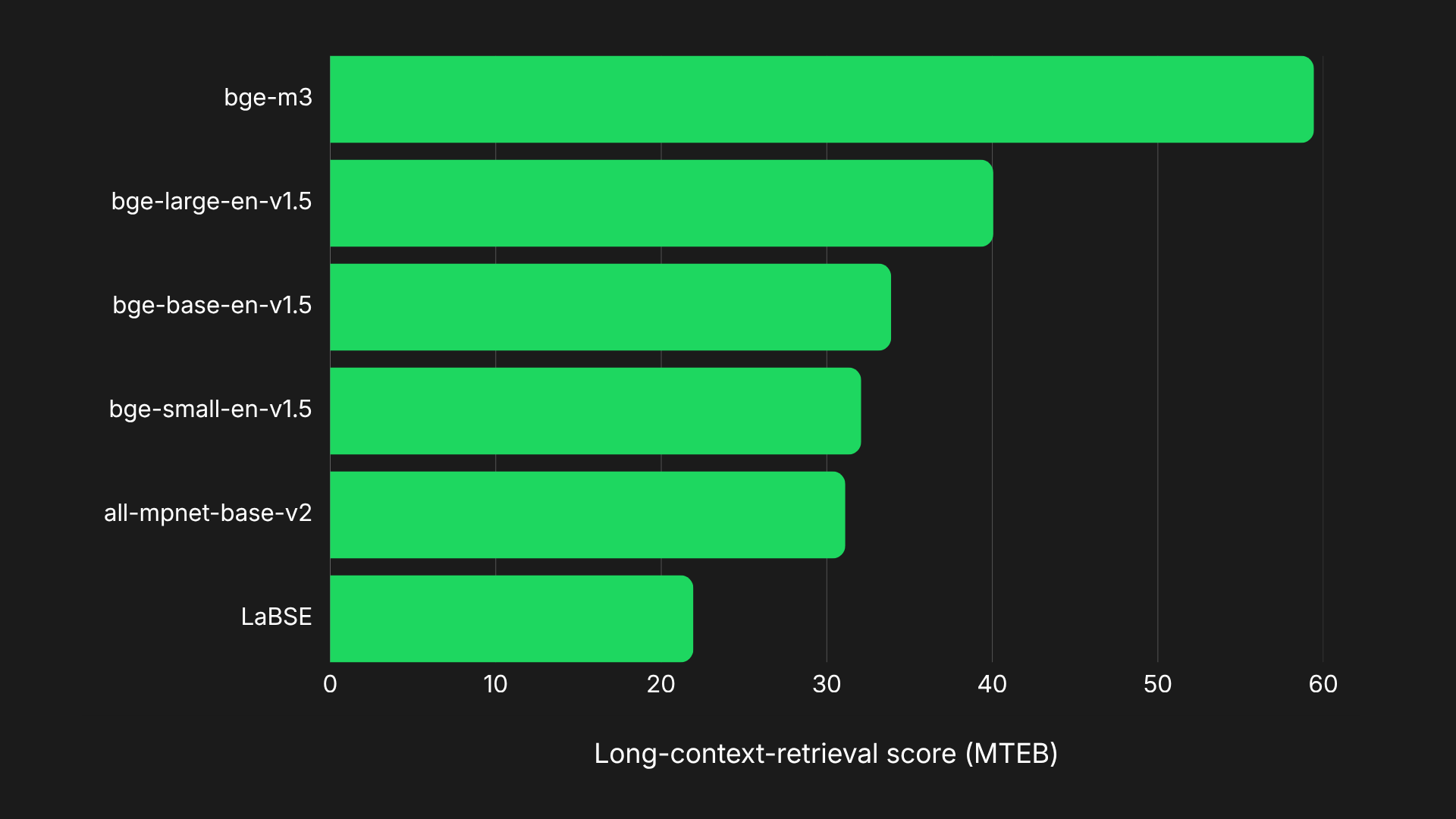

Figure 1: Comparison of embedding models based on their Long-Context Retrieval scores on the MTEB leaderboard.
Understanding the Trade-offs
Every embedding model transforms text into a dense numerical vector where semantically similar text is positioned closer together in the embedding space. During retrieval, the query embedding is compared against document embeddings using similarity metrics such as cosine similarity or dot product, allowing the vector database to retrieve the nearest neighbors.

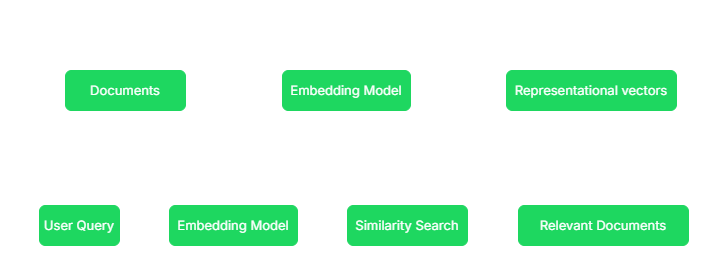

Figure 2: Simplified embedding-based retrieval workflow.
While all embedding models follow the same workflow, they don't optimize for the same goals. Before comparing benchmark scores, consider what matters most for your application.
Retrieval Quality
The goal of an embedding model isn't to generate larger vectors, it's to place semantically related content closer together and unrelated content farther apart. For RAG, that means retrieving the context that actually answers the user's query.
Benchmarks like MTEB are useful, but they're evaluated on standardized datasets. Your production data may look very different. Documentation, legal contracts, source code, customer feedback, and multilingual knowledge bases all have different semantic distributions, so a model that performs well on one type of data may not perform equally well on another.
For example, BAAI/BGE-m3 takes a more general approach, supporting multilingual and long-document retrieval along with dense, sparse, and multi-vector retrieval. A specialized model may outperform it on a specific domain, while BAAI/BGE-m3 may be the better choice when your data is diverse.
That's why benchmark scores are a starting point, not the final decision. Your own dataset is the real test.
Embedding Dimensions
Embedding dimensions determine how much information can be encoded into each vector. Higher-dimensional embeddings generally capture richer semantic relationships, but they also increase vector size, storage requirements, and search cost.
More dimensions don't automatically translate into better retrieval. For example, BAAI/BGE-small-en-v1.5 produces 384-dimensional embeddings and reports an MTEB retrieval score of 51.68, while sentence-transformers/all-mpnet-base-v2 produces 768-dimensional embeddings and scores 43.81 on the same benchmark.
The goal isn't to choose the model with the most dimensions, rather to find the smallest representation that provides the retrieval quality your RAG pipeline needs.

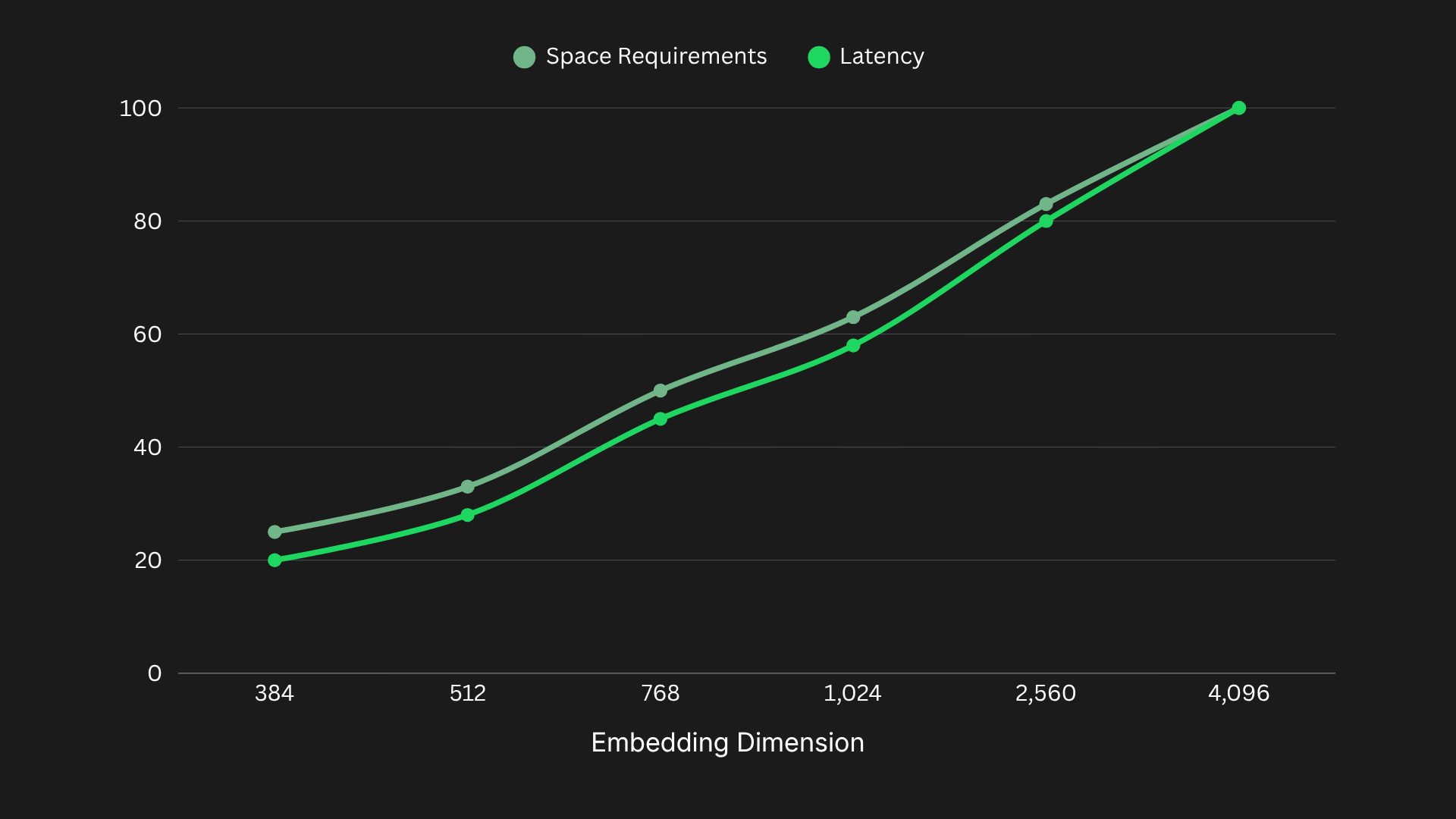

Figure 3: Illustrative trade-off between embedding dimensionality, space requirements, and latency.
Latency and Scale
At small scale, embedding latency and vector size may have little impact. But with millions of vectors and high query volumes, these factors directly affect throughput, memory usage, and infrastructure cost.
Larger vectors require more memory to store and more computation during similarity search. If your application serves thousands of queries per second, lightweight embedding models often provide a better balance between retrieval quality and throughput.
For high-throughput RAG systems, a smaller model such as BAAI/BGE-small-en-v1.5 can be preferable when its retrieval quality meets your requirements. If retrieval quality is the priority, a larger model such as BAAI/BGE-large-en-v1.5 may justify the additional compute.
Language Support
Language coverage directly affects retrieval quality because the embedding model needs to represent queries and documents in a shared semantic space. An English-optimized model may work well for English corpora, but multilingual or cross-lingual RAG requires models trained to preserve semantic relationships across languages.
For example, BGE English variants are suited to English-focused retrieval, while BGE Chinese models can be a better fit for Chinese-language corpora. sentence-transformers/LaBSE is designed for multilingual and cross-lingual representations, making it useful when queries and documents can appear in different languages.
For multilingual RAG, evaluate same-language and cross-language retrieval separately. A model that supports more languages isn't automatically better, if your corpus is primarily Chinese, a Chinese-optimized model may outperform a general multilingual model.
Feature comparison
Instead of searching for a single "best" embedding model, match the model to your workload. The table below highlights some of the options available, WriftAI hosts many more than what's shown here.
Models | Embedding Dimensions | Language Support | Context Length | Retrieval Strength | Best Suited For |
|---|---|---|---|---|---|
1024 | English | 512 | Very High | High-quality English RAG and semantic search | |
768 | English | 512 | High | General-purpose English RAG | |
384 | English | 512 | High | Lightweight, low-latency RAG | |
1024 | Chinese | 512 | High | Chinese retrieval and semantic search | |
1024 | Multilingual | 8192 | Very High | Multilingual and long-context RAG | |
512 | English | 77 | Multimodal | Text-image retrieval and image-text matching | |
512 | English | 77 | Multimodal | Higher-quality text-image retrieval | |
1024 | Multilingual | 32K | Very High | Multilingual, long-context RAG and semantic search | |
384 | English | 256 | Moderate | Fast, lightweight semantic search and RAG | |
768 | English | 384 | High | General semantic search and English RAG | |
768 | Multilingual | 256 | Moderate | Multilingual semantic search |
Choosing the right model
Choosing an embedding model goes beyond comparing benchmark scores. The decision should start with your RAG requirements, the type of data you handle, languages you support, retrieval quality you need, latency targets, and the infrastructure available to you.

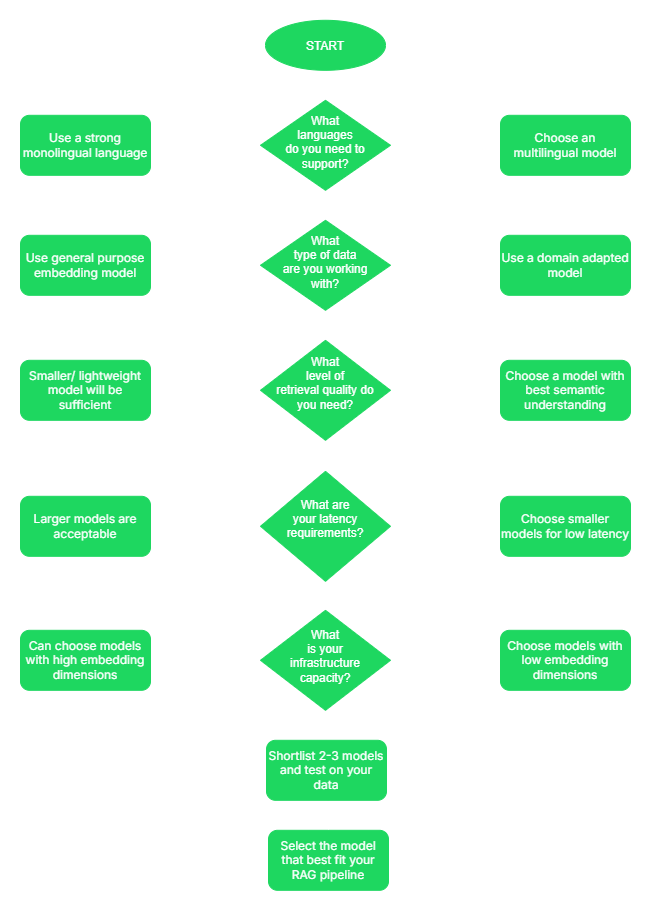

Figure 4: A decision framework for selecting an embedding model for a RAG pipeline.
The goal is to think through these requirements before looking at benchmark rankings. A model that tops a leaderboard may still be the wrong choice if it doesn't match your language, latency, scale, or retrieval requirements.
Final Thoughts
Choosing the right embedding model is ultimately about finding the right balance between retrieval quality, latency, scalability, and cost. Instead of relying solely on benchmark rankings, consider your data, language requirements, workload, and infrastructure constraints first, then choose the model that best fits those needs. With the range of embedding models on WriftAI, you can find the right fit for your RAG pipeline and ensure that the context reaching your LLM is as relevant as possible.
